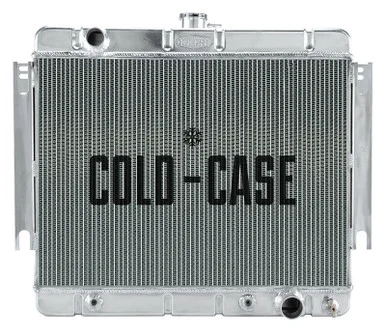

66-68 Impala Cold Case Stamped Aluminum Radiator
1966-1967 Chevy Impala Aluminum Performance Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don’t buy a 3 or 4 row aluminum radiator! It doesn’t cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you’d be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/maunal trans
- Direct fitment for 66-67 Impala
Radiator Specs
- Core Height 17.5 inch
- Core Width 25.1 inch
- Overall Height 23.5 inch
- Overall Width 28.75 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
Will fit in a 1961-1965 impala as well. Water neck and upper hose needs to be swapped for a 66-68 style to fit. This option is a good one for those looking for maximum cooling as upper LH and lower RH inlet/outlet is much more efficient than upper and lower being on the same side.
| Color: | Silver |
|---|---|
| Core Height: | 17.5 Inch |
| Core Width: | 25.1 Inch |
| Finish: | Polished |
| Material: | Aluminum |
| Overall Height: | 23.5 Inch |
| Overall Width: | 28.75 Inch |
| Part Type: | Radiator |
| Thickness: | 3.0 Inch |
| Transmission Type: | Manual|Automatic |
