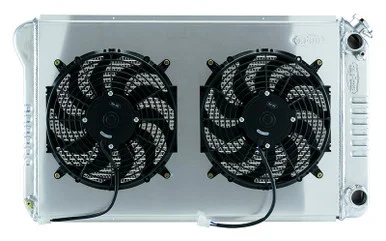

68-77 GM A-Body w/LS SWAP, Aluminum Radiator & Dual 14 Inch Fans
Meant to be used with an external trans cooler.
1968-1977 GM A-Body with LS Swap Aluminum Performance Dual Flow Radiator and 14 Inch fan kit. Meant to be used with an external trans cooler.
When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25 Inch tubes, aluminum fan shroud and dual 14 Inch fans, flowing at 2200cfm per fan! For extreme horsepower applications OR if you just want the best of the best…
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don’t buy a 3 or 4 row aluminum radiator! It doesn’t cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you’d be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
Fan Diameter 12 Inch
All Aluminum
(2) 1.25 inch Tubes
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
Dual Flow Design
Direct fitment for 68-77 A-Body LS Swaps
Radiator Specs:
Core Height 18.4 inch
Core Width 28.5 inch
Overall Height 18.82 inch
Overall Width 34.21 inch
Overall Thickness 3 inch
Upper Hose 1.25 inch
Lower Hose 1.5 inch
Tubes (2) 1.25 inch Tubes
| AMP DRAW: | 6.85 Avg |
|---|---|
| Blade Material: | Curved Nylon |
| Fan Diameter: | 14 Inch |
| Finish: | Polished |
| Material: | Aluminum |
| Max Fan CFM: | 3600 CFM |
| Part Type: | Radiator Kit |
| Thickness: | 6.75 Inch |
| Transmission Type: | Manual |
