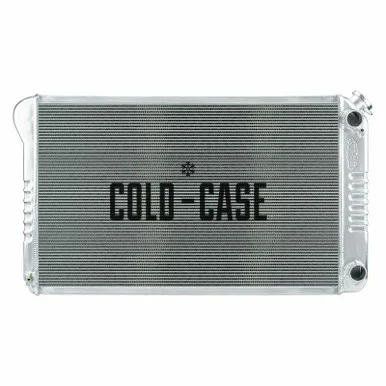

77-87 Chevy/GMC Truck LS Swap & AT 21″ Aluminum Radiator Polished OE Style Tanks
Designed to be used with an external trans cooler
1977-1987 Chevy/GMC Truck 21 Inch LS Swap Aluminum Performance Radiator. This is the radiator that is 21 Inch high overall and has the steam port for an LS Swap. External trans cooler recommended.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don’t buy a 3 or 4 row aluminum radiator! It doesn’t cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you’d be hard pressed to find a difference over an original versus a COLD-CASE.
100 percent TIG welded
All Aluminum
2 Rows of 1.25 Inch tubes
Polished OE style tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
For automatic trans
Direct fitment for 77-87 GM Truck LS Swap trucks
Radiator Specs:
Core Height 18.8 Inch
Core Width 28.35 Inch
Overall Height 21 Inch
Overall Width 34.33 Inch
Overall Thickness 3 Inch
Tubes (2) 1.25 Inch Tubes
Upper Hose 1.50 Inch
Lower Hose 1.50 Inch
| Core Height: | 18.8 Inch |
|---|---|
| Engine: | LS Swap |
| Overall Height: | 21 Inch |
| Part Type: | Radiator |
| Shroud Material: | No |
| Transmission Type: | Manual |
| Color: | Silver |
| Core Width: | 28.35 Inch |
| Finish: | Polished |
| Material: | Aluminum |
| Overall Width: | 34.33 Inch |
| Thickness: | 3.0 Inch |
