QuickTime Bellhousing; LS/LT1/LT4 To T56 Chevy LS/T56 Magnum Trans.; 6.1 SFI Certified; 11 in. Clutch Disc; Hyd.; 168 Tooth; 5.500 in. Height; OEM Starter;

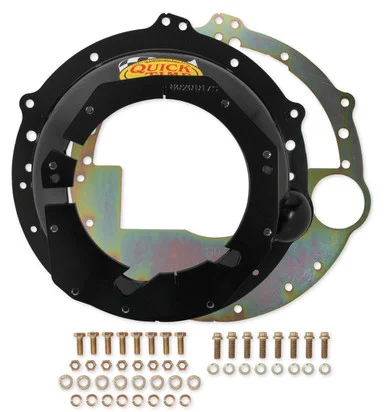

The Quick Time RM-8020 bellhousing connects small block and big block Chevy engines to T-56 Chevy LS-1, T56 Magnum and T56 Magnum XL transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features & Benefits
- Patent On 16 Points Of Bellhousing Design And Process
- Designed For Use Hydraulic Throwout Bearing
- Fits Up To A 168 Tooth Flywheel And 11 in. Clutch
- Utilizes OEM Style Starter Attachment / Placement
- Bellhousing Depth 5.555 in.
- Weight 20 lbs.
- SFI 6.1 Certified
- Made In The USA
| Color: | Black |
|---|---|
| Engine: | Chevy LS |
| Finish: | Semi-Gloss |
| Item Height: | 5.500 in. |
| Material: | Steel |
| Part Type: | Transmission Bell Housing |
| Transmission Model: | T56 Chevy LS |
| Transmission Type: | Manual |
